What Does Trail Rated Actually Mean? The 5 Tests Behind the Jeep Badge

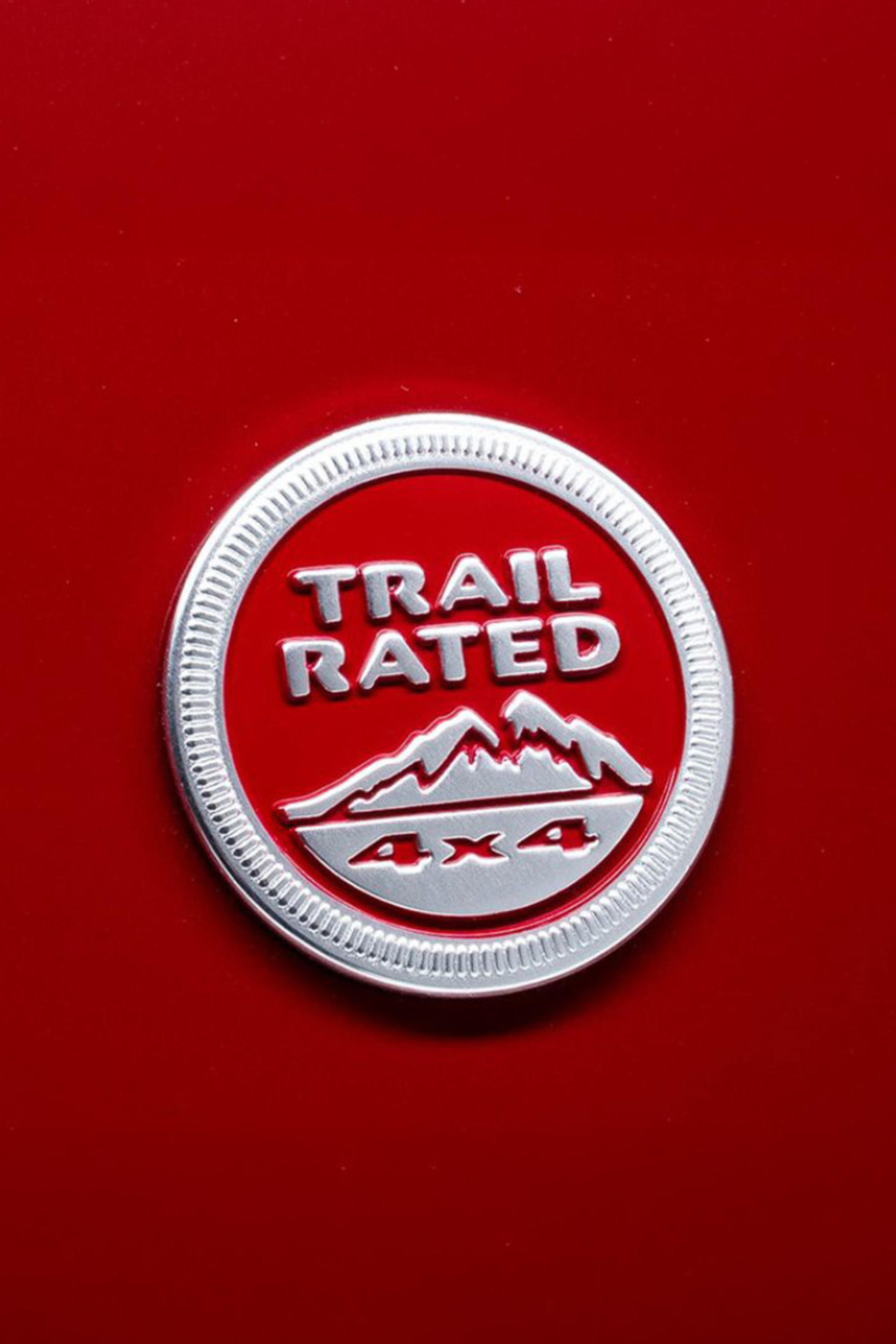

You have probably seen the small Trail Rated badge sitting on the side of a Jeep Wrangler or Gladiator.
It's easy to assume it simply means, "this Jeep has four-wheel drive". It does not.
Trail Rated® is Jeep's own off-road capability certification. Before the badge is fitted, a particular factory-built Jeep must meet the brand's requirements across five areas: traction, water fording, manoeuvrability, articulation and ground clearance.
The program was developed by Jeep Engineering with the Nevada Automotive Test Center and combines computer simulation, controlled testing and natural-terrain evaluation, including validation on California's Rubicon Trail. Most importantly, the certification applies to the vehicle's specific factory configuration.
A Jeep badge, an all-wheel-drive system or an impressive ground-clearance figure does not automatically make a vehicle Trail Rated.
That distinction matters when you are heading beyond the bitumen.
Around South East Queensland, a dry access track can look very different after heavy rain. The badge cannot tell you whether a track is safe on a particular day, but it can help you understand what the vehicle underneath you was designed to handle.
Trail Rated Is More Than Four-Wheel Drive
Four-wheel drive is only one part of off-road capability.
A vehicle might send power to all four wheels but still struggle when one tyre lifts off the ground. It might have plenty of clearance underneath but a long front overhang that hits the first steep climb. It might climb well but lack the wheel travel needed to stay settled across deep washouts.
Trail Rated looks at the vehicle as a complete system.
That system can include low-range gearing, locking differentials, electronic traction management, suspension travel, underbody protection, water sealing, steering geometry, tyres and the shape of the body itself.
It is also a performance outcome, rather than one compulsory list of parts. A Wrangler Rubicon can meet the standard using low-range gearing, solid axles and locking differentials, while other Trail Rated Jeep configurations have used independent suspension and electronically controlled traction systems.
The question is not simply, "Does it have this particular component?"
It is: Can the complete vehicle do all five jobs?
The Five Jobs a Trail Rated Jeep Must Be Able to Do
1. Can It Keep Moving When Grip Disappears?
Traction is not just about whether all four wheels are being driven.
Imagine easing your Jeep through a deeply rutted section of track. One wheel becomes light, another is pressed firmly into the ground, and the surface changes from compact dirt to loose mud.
The vehicle needs to keep sending useful torque to the tyres that can still use it.
Depending on the Jeep, that can involve:
- Low-range gearing
- Front or rear locking differentials
- Electronic limited-slip differentials
- Brake-based traction control
- Appropriate tyres
- Careful throttle and transmission calibration

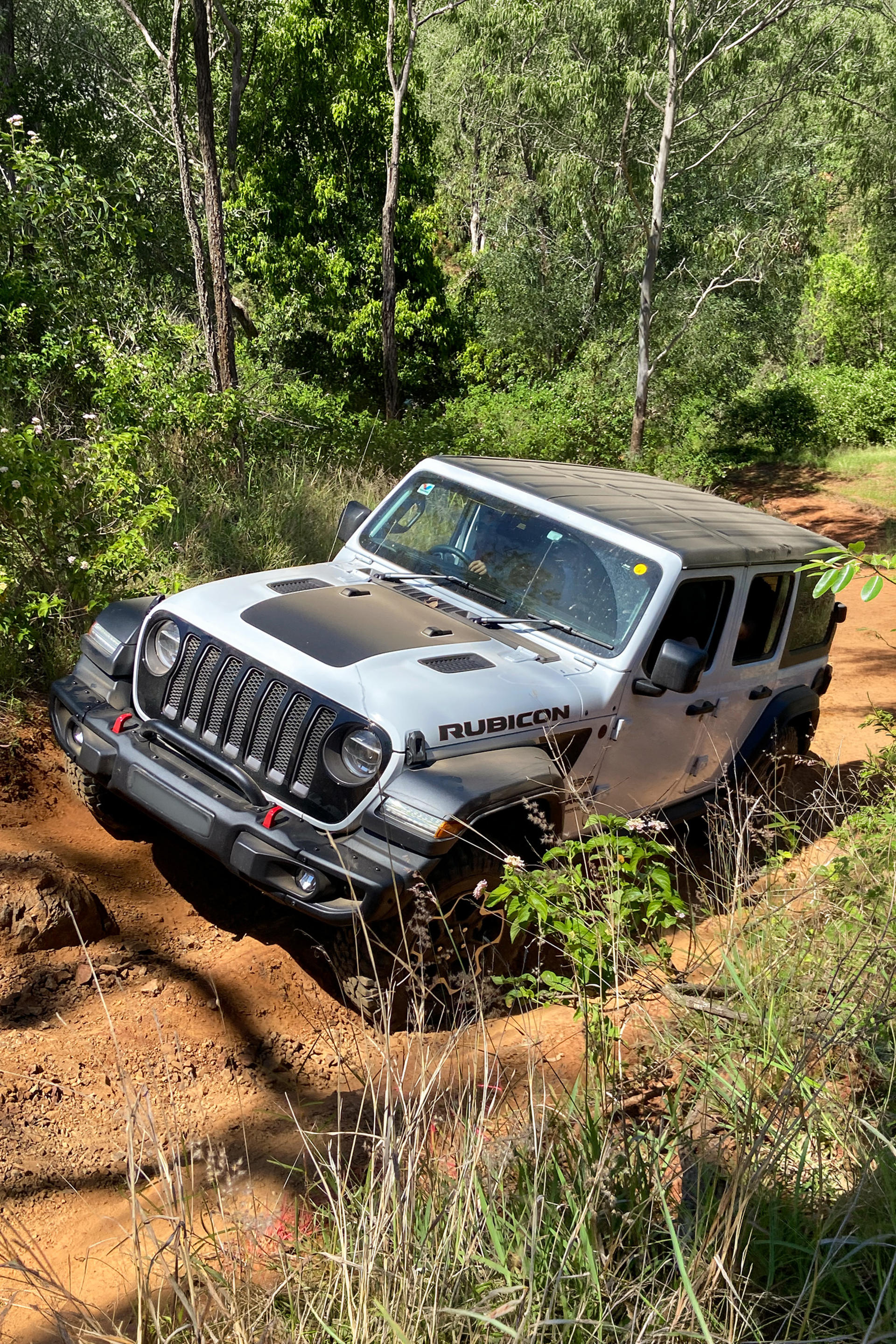

The current Wrangler Rubicon provides a clear example. Its Rock-Trac system includes a two-speed transfer case with 4.0:1 low range, along with Tru-Lok front and rear locking differentials.
Low range allows the vehicle to move very slowly while still producing useful pulling force. Locking the differentials helps stop power escaping through the easiest-spinning wheel when another wheel has much more grip.
It isn’t just that the Wrangler has an impressive list of hardware, but what that hardware allows the driver to do: approach an obstacle slowly, make small corrections and maintain controlled forward movement rather than relying on speed and momentum.

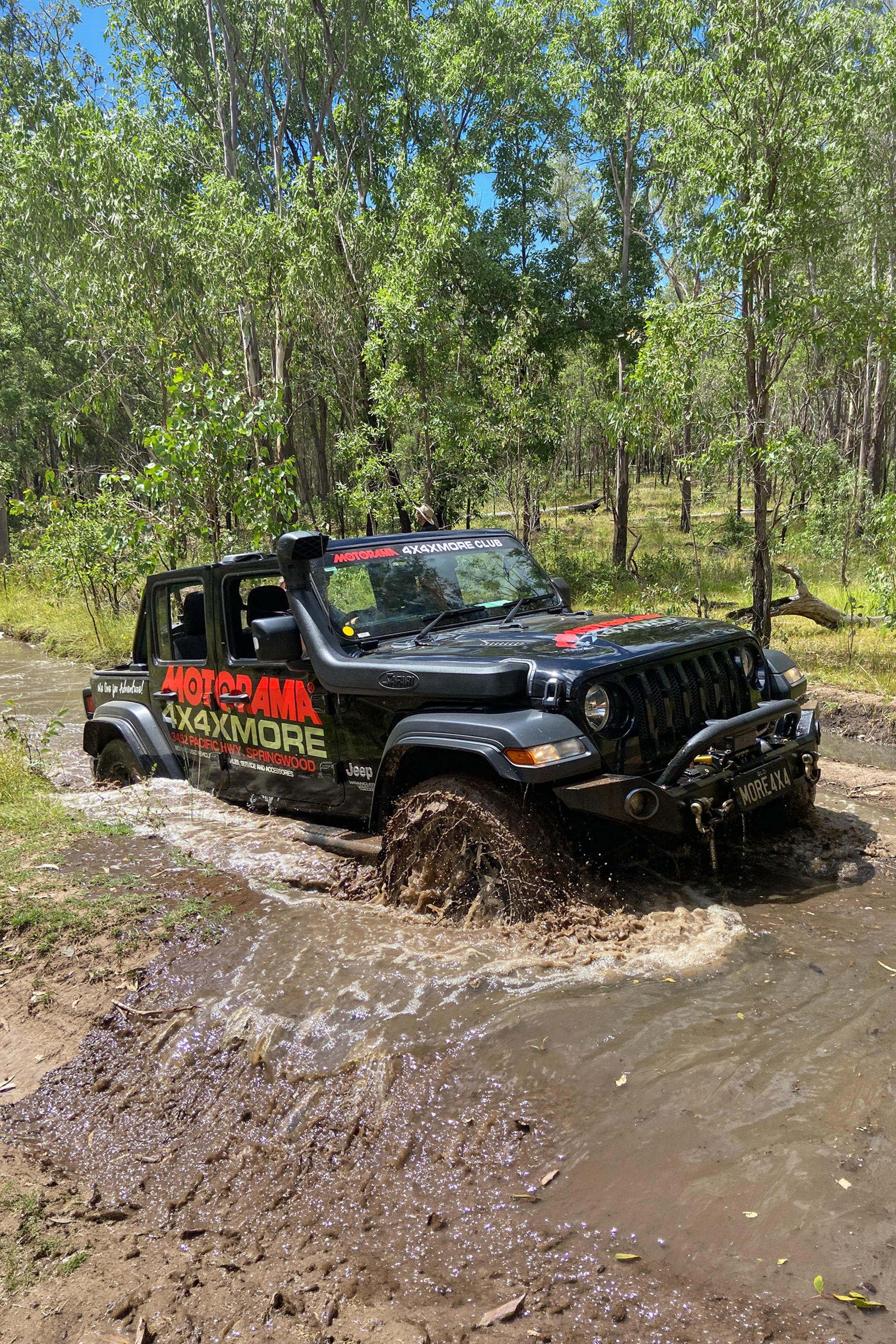

2. Can It Handle a Known Water Crossing?
Water-fording capability involves considerably more than positioning the air intake higher in the vehicle.
Engineers also need to consider:
- Electrical connections and wiring
- Openings in the body and underfloor
- The position of sensitive electronic modules
- Cooling-system behaviour
- Battery protection in electrified vehicles
- The vehicle's suspension height
- The depth at which water could enter the intake or cabin
Trail Rated vehicles use additional sealing and intake positioning to support their published capability. The current Wrangler Rubicon and Gladiator Rubicon both carry a published wading depth of 760mm.
That figure is a limit under specified conditions, not a target and certainly not permission to enter floodwater.
The depth and condition of a crossing need to be known before entering. Moving water can be significantly more dangerous than still water, hidden holes can change the depth without warning, and a published wading figure does not guarantee the vehicle will escape damage.
Always follow the guidance for your exact model in its owner's manual. Where water is fast-moving, flooded or cannot be assessed properly, the safe decision is not to enter it.
3. Can It Get Around the Obstacle?
Off-road manoeuvrability is partly about fitting between trees and rocks, but it also affects how easily the driver can position the vehicle before an obstacle.
Jeep considers factors such as:
- Wheelbase
- Turning circle
- Steering angle
- Body width
- Front and rear overhang
- Low-speed steering response
- Visibility from the driver's seat
This is one area where two Trail Rated Jeeps can behave very differently.
The Wrangler Rubicon 2-Door has a 2,459mm wheelbase and a 10-metre turning circle. The Gladiator Rubicon has a much longer 3,488mm wheelbase and a 13.6-metre turning circle.
The shorter Wrangler can turn more tightly and change direction more easily on a narrow track. The Gladiator requires more planning and may need a multi-point turn in the same space.
Both are still Trail Rated.

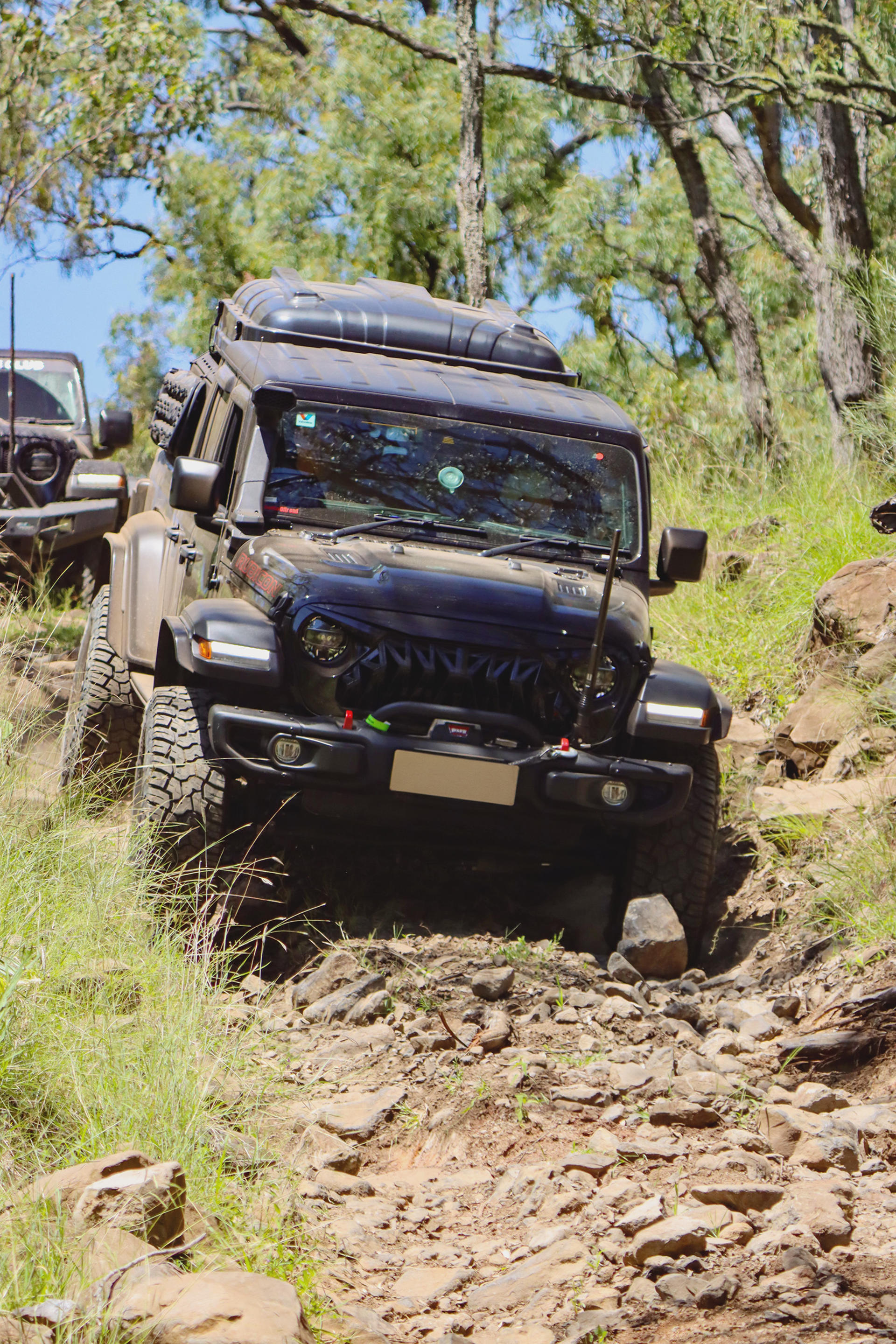

4. Can It Keep Its Tyres Working Over Uneven Ground?
Articulation describes how much the wheels can move vertically in relation to the body and to one another.
Good articulation helps keep the tyres in contact with the terrain. That matters when the vehicle is crossing a washout, climbing diagonally over a rock ledge or moving through deep offset ruts.
The Wrangler Rubicon and Gladiator Rubicon use solid link-coil axles at both ends. They also have an electronic front stabiliser-bar disconnect, which allows more independent movement between the front wheels at low speed.
When the track becomes crossed-up, that extra movement can help a tyre stay on the ground for longer. If a wheel does become unloaded, the locking differentials and traction systems can then help direct torque to the wheels that still have grip.
A solid axle is not the only way to meet Jeep's requirement. Trail Rated vehicles using independent suspension have also qualified where the complete suspension and traction-management system delivered the necessary result.
Once again, it is the outcome that matters.
5. Can It Clear the Obstacle Without Getting Hung Up?
Ground clearance sounds like a single measurement, but Trail Rated considers much more than the distance between the ground and the lowest point beneath the vehicle.
It also considers:
- Approach angle: whether the front of the vehicle can begin a steep climb without striking
- Breakover angle: whether the middle of the vehicle can cross a crest without becoming grounded
- Departure angle: whether the rear can clear the obstacle as the vehicle drives away
- Underbody protection: what happens if contact does occur

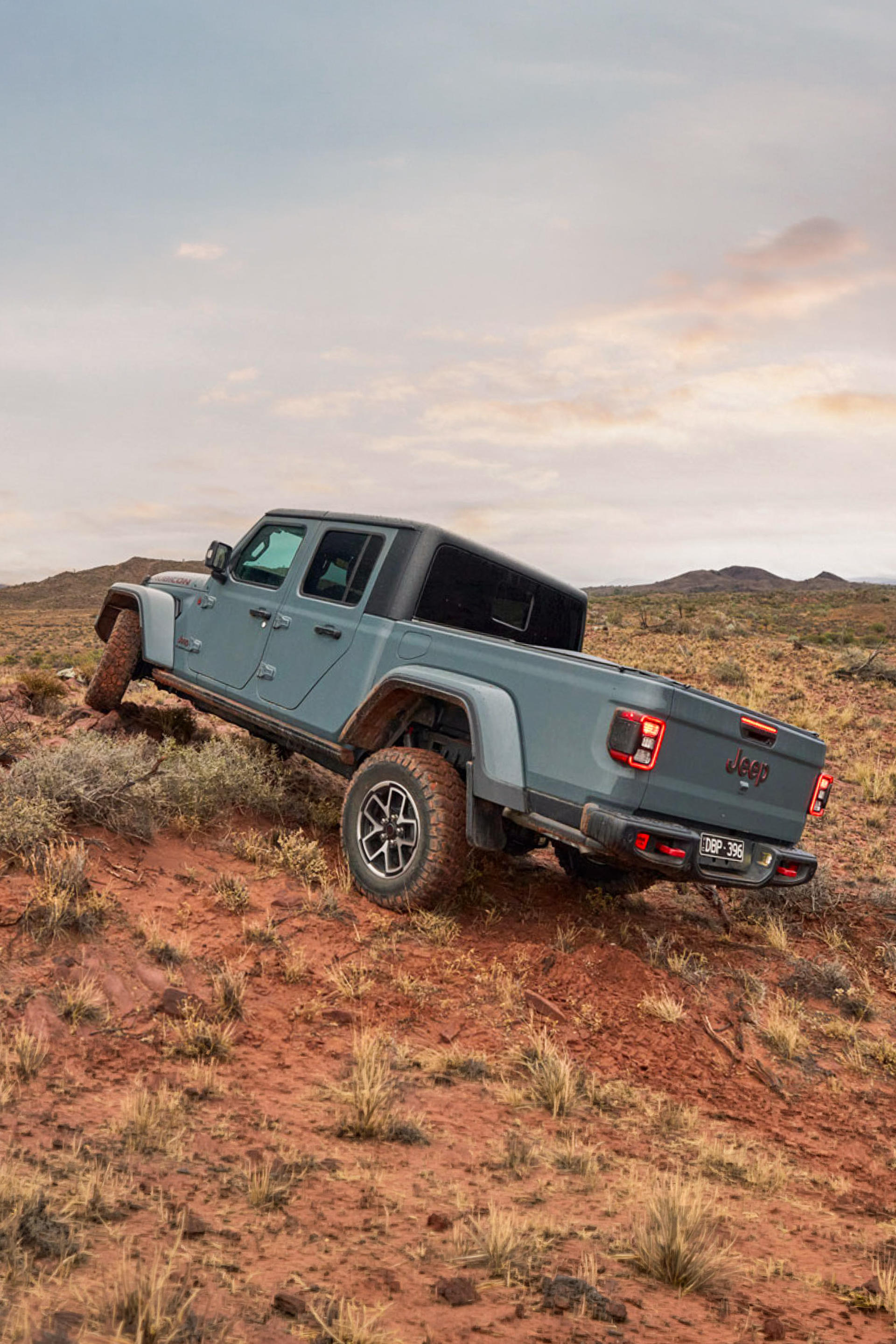

This is another area where Wrangler and Gladiator show the difference between certification and identical capability.
The Wrangler Rubicon 2-Door has a breakover angle of 27.8 degrees. The much longer Gladiator Rubicon has a breakover angle of 18.4 degrees.
That does not make the Gladiator incapable. Its longer wheelbase and ute tray simply create a different set of compromises. It provides the practicality of a tray and a more spacious platform, but the driver needs to take more care over sharp crests and deeply cut terrain.
Skid plates and rock rails do not improve the raw angles, but they help protect vulnerable areas when the available clearance is used up.
Different Jeeps, Different Kinds of Capability
Trail Rated represents Jeep's most dedicated off-road certification, but it is not the only expression of capability across the Jeep range.
Other Jeep models balance capability with different priorities.
The Grand Cherokee Summit Reserve 4xe, for example, combines Jeep's four-wheel-drive experience with plug-in hybrid technology, premium comfort and everyday family practicality. It includes:
- Quadra-Trac II active four-wheel drive
- A two-speed transfer case with low range
- Selec-Terrain drive modes
- Quadra-Lift air suspension
- Up to 276mm of ground clearance in Off-Road 2
- A published 610mm wading depth
- A protected and water-sealed high-voltage battery
While this particular model does not wear a Trail Rated badge, it still brings together an impressive range of systems designed to help drivers remain confident across changing surfaces and conditions.
The Wrangler and Gladiator place specialised off-road ability at the centre of their design. The Grand Cherokee blends genuine four-wheel-drive technology with refinement, space and electrified performance.
The Avenger takes Jeep's adventurous character into a compact electric SUV and includes features such as Selec-Terrain, Hill Descent Control, short overhangs and 200mm of nominal ground clearance. Although it is not Trail Rated, those features reflect Jeep's focus on giving drivers added confidence when the road becomes uneven, loose or unsealed.
Rather than expecting every Jeep to follow the same formula, the range offers different levels and styles of capability for different kinds of driving.
Capability Still Starts With Good Preparation
A capable Jeep gives its driver more options, but good preparation remains part of every successful trip.
Track conditions can change quickly after rain, especially across South East Queensland. Vehicle load, tyre pressures, visibility, speed and line choice can all affect how a Jeep behaves on the day.
Water crossings should only be attempted when the depth, surface and flow are known to be safe, and the published guidance for the exact model should always be followed.
Similarly, accessories and modifications should be chosen carefully so they support the way the vehicle will actually be used.
This does not take away from the capability built into the vehicle. It helps owners make the most of it.
What Trail Rated Means for a Jeep Owner
For a Jeep owner, Trail Rated is a sign that off-road ability was considered from the beginning.
The driveline, suspension, steering, tyres, protection and body geometry have been developed to work together across a wide range of off-road situations. That provides a strong foundation whether you are navigating rocky terrain, crossing deep ruts or heading away for a weekend beyond the bitumen.
More than anything, the badge represents the confidence to explore with a vehicle designed for the job.
